Internal toggle latch type vibration damping toggle latch拉手,搭扣,旋钮天甲工业

A112B

Internal toggle latch type vibration damping toggle latch

Polishing

purpose：Internal toggle latch type vibration damping toggle latch

model Check the box

- + individual

Total price (before tax):5.3*100=530.00element

total:560.00element

communication

quantity	price
1-4	16.8element
50+	13.6element

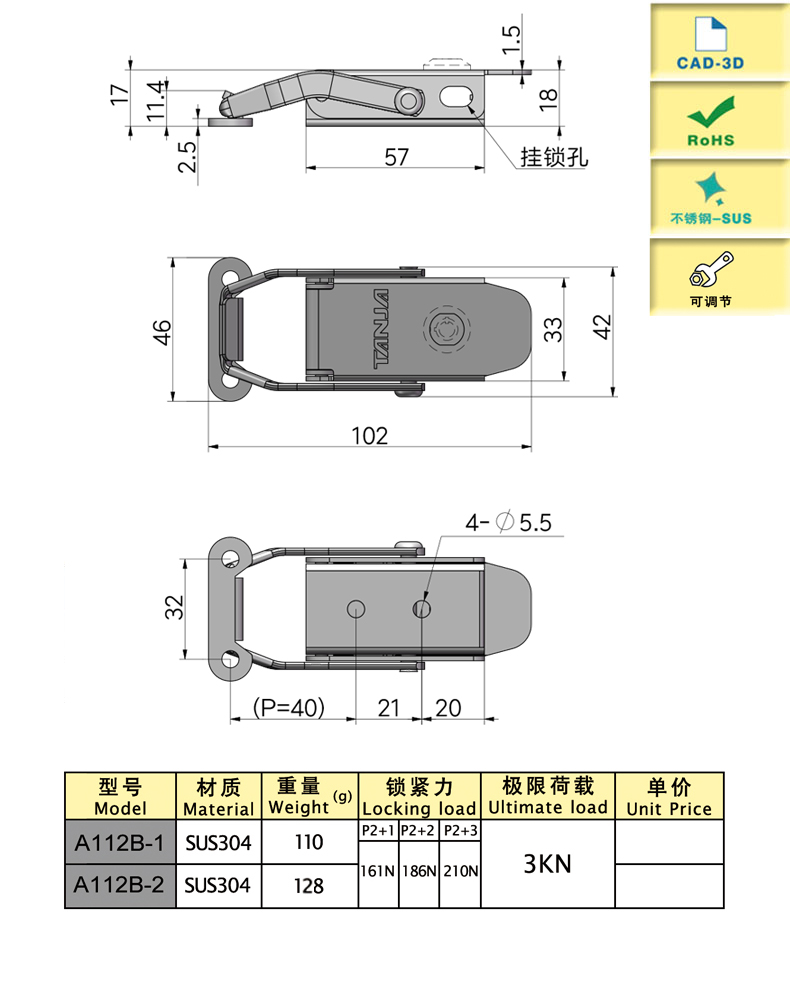

Product dimension diagram

Product dimensions and attributes

	model	function	Length (mm)	material quality	Weight (g)	Locking force (N)	Ultimate load (N)	3D	Purchasing
select	Reset							download	select
	A112B-1(TJ)	concealed,damping	103	SUS304	/	210	/	download	buy
	A112B-2(TJ)	concealed,damping,with lock	103	SUS304	/	210	/	download	buy
	A112B-4	vibration damping	62	SUS304	45.41	49/78/98	1500	download	buy

characteristic

Built in spring with vibration damping function, can maintain elastic preloading on the connecting body

Equipped with lock cylinder and matching key, with anti-theft function and security

Services available

With side holes, can be equipped with locks or lead seals to prevent loosening
